Municipal Steel Structures

Have a need for a large steel structure as part of a public works project?

We've partnered with a large steel structure manufacturer so we can meet all your Park and Rec needs.

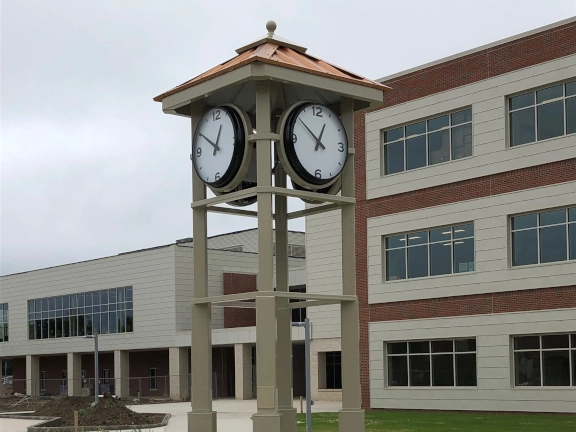

Clock tower

We have people in place who can bring your project all the way.

Custom Pavilion

Send us your "back of the envelope" sketch.

We will fill in the blanks.

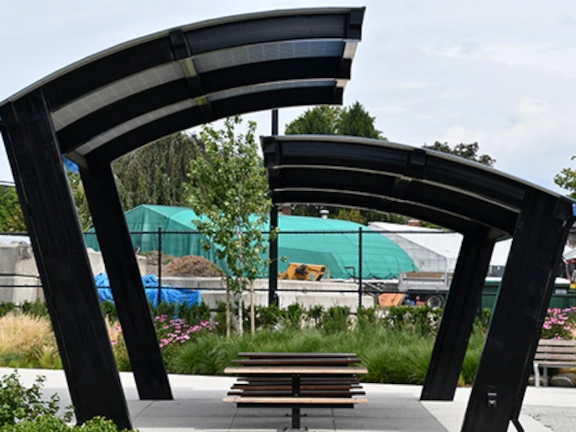

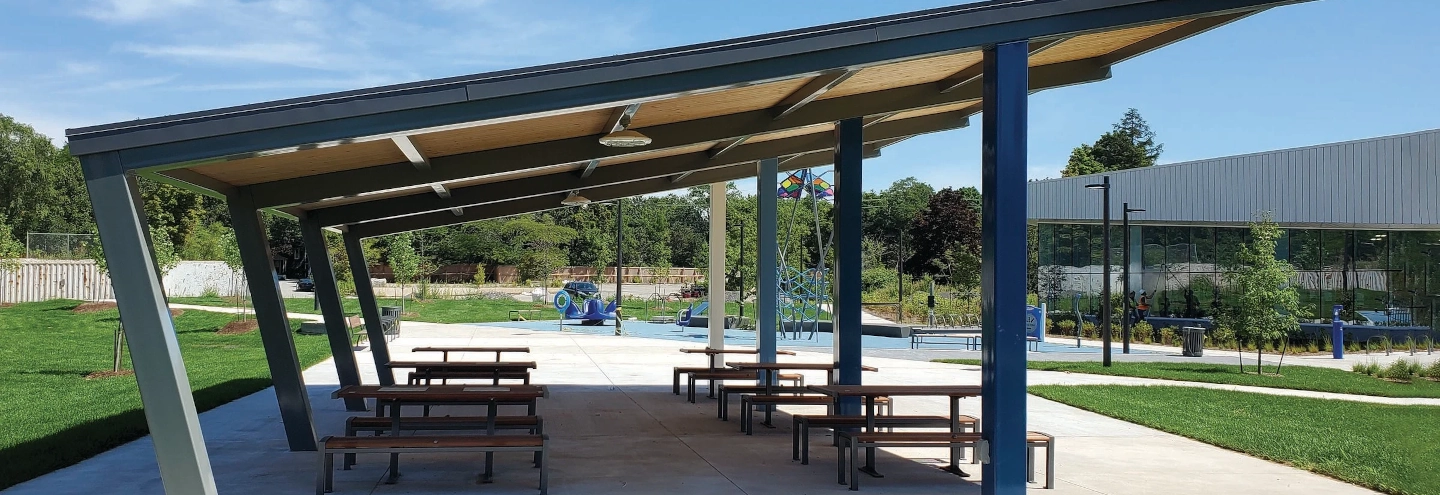

A steel pavilion that resembles two arms

Custom Shade Shelter

We call this the Arms Pavilion.

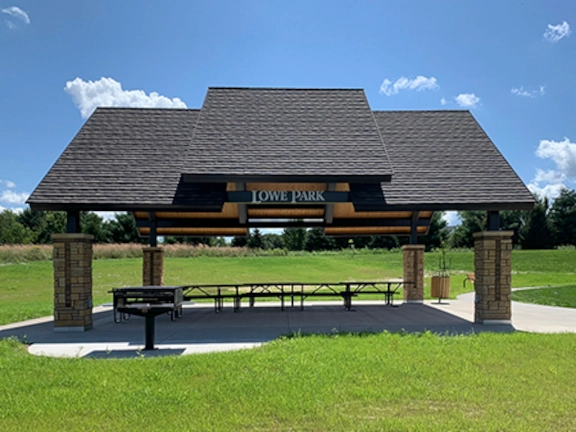

Custom Steeltown Shade Shelter

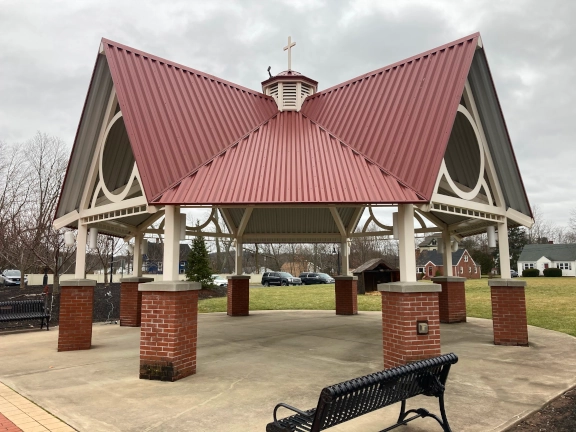

A glorious eight sided custom, steel, shade pavilion

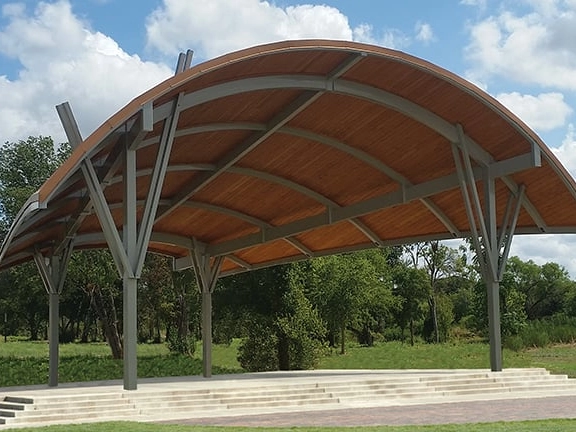

Huge pavilion that looks like half a barrel

Tapered Barrel Pavilion

This pavilion looks like half a barrel

Baldwin Pergoals did not build these structures, this section explains that we have the capability to design custom pavilion-like structures and to oversee the manufacture and installation of complex steel projects.

The rigidity of the pergola is derived from the stability of the connection to the Earth. The importance of big, solid footings which are placed accurately, cannot be overstated.

The rigidity of the pergola is derived from the stability of the connection to the Earth.
Concrete footings: 14" Diameter minimum for 10" square and 12" round columns.
Our site plan will show a diagonal dimension. This helps you square the footings to each other.
Concrete pad: Should be poured 12" deep in the area where the columns will stand.
Stone wall: It's best to drill 18" deep into the well built, mortared stone wall.
Concrete pier: Wet set our 5/8" stainless steel rods into the footing then build the pier
Tolerance factor: Footings should be placed accurately with an overall error margin of less than an inch.
Conduit in footings: Bring a sweep into your footing with the center about three inches off center.
Deck mounted: Ask us for PDF drawings of best practice connection methods.

It is the customers responsibility to make sure that an adequate mounting surface is in place. The customer is responsible for supplying relevant dimensions such as the depth and width of column centers and overall height requirements for the structure.

All dimensions, including overhangs and member spacing are completely customizable during the design process. At the time of installation, nothing can be changed.

Standing a column up onto a concrete footing. We previously drilled the footing and epoxied a 5/8" stainless steel threaded rod into the footing.

Gather Your Measurements

Measurements are taken from column centers, our typical overhang is 24 inches
A freestanding pergola that measures 120" x 120" on center will have an overall size of 168" x 168"
An attached pergola that measures 120" x 120" on center will have an overall size of 144" deep x 168" wide
All dimensions, including overhangs and member spacing are completely customizable

Use our Pricing Tool

Our pricing tool let's you design your pergola in real time and get an actual price
You will see a plan view CAD drawing of your pergola
You can consider our electrical options, a shade system and/or our installation service
follow this link to our Pricing Tool
You will have the ability to save your project into our database then share the link with your team for group collaboration

Your photos help us while desiging the best pergola

Send Us Photos

Your photos help us serve you better in the design phase
Please send us pictures of your proposed site and the exterior of your home
Pictures can be sent via email to sales@baldwinpergolas.com
...or via text to (860) 500-1741. Our pricing tool also allows one to upload photos and various file types

a picture of Mike setting up at an architecture show

Speak With Our Team

Once you have sent us your measurements and pictures we will reach out to you
Our project manager, Michael Hurlburt, will work out all of the important details
Once we have an understanding of your vision we will produce a set of drawings and a proposal
If you accept our proposal we require a 50% deposit to begin production

an electrician wiring lights into a pergola

Consider the Options

We offer a wide variety of options for you to consider
Decorative Details: We offer an array of column styles and rafter contours
Finishes: Custom colors are available, including color matched finishes
Electrical: We can factory prewire your structure to accommodate lighting, fans, heaters, and more

Confirm The Details

Review and confirm your pergola or pavilion drawings
Review your electrical and shade system options
Sign and return the proposal
Once a signed proposal is returned and a deposit is received, we will begin production

Testimonials

We are on island and the pergola looks GREAT!!! It is better than we had hoped for and as you know by now, I think it through to the end, so we had high expectations. You have exceeded them all! Thanks for all of the effort and all of the hard work getting this installed in a day. It really adds another dimension to the house, balances it in the yard, and best of all creates a new exterior room to enjoy. The wisteria have been ordered and will be planted in the next couple weeks. Thanks again.

Steve and Rhea

Wow, Chris. I really appreciate your help on this effort. These plans are excellent and will definitely make my job easier. Again, thank you so much for your help. I will send you pictures when we get it all done. This pergola is the centerpiece of the Rosa Parks elementary school's outdoor classroom so it is a big deal to them that we are helping them out.

Kent Warkentin

You are wonderful! The pergola is spectacular, and we are thrilled. We promise to send pictures of wedding guests enjoying our new "outside room." Thanks again.

Joe and Pat Pifko

Max, the pergola went up in a snap and we are very happy with it. We've recieved many complements already!

Lou and Barbara Ricci

I have been meaning to send you these pictures of our pergola, showing the Shade Tree awnings, for over a year now. The pictures were taken in September this year, about a year after the pergola was first assembled. My brother and I had just finished washing the pergola with Murphy Oil Soap, and it had that wonderful, like new, honey glow.

Joe and Terry Mitlyng

It was such a beautiful day on Sunday I had my coffee under the pergola and Sunday night we ate dinner under it. We never spent any time out on the patio in the past.

Tim, Cathy, and Elizabeth.

The pergola looks beautiful and is getting rave reviews. It took about 7 hours to erect with 2 fairly good hands to help me. Thanks Max, I think I will have more work for you in the future.

Kelly Spencer

The pergola arrived safely, heck of a box you guys made. I fabricated the roof mounts, got the ledger installed, installed the columns and support beam - and wouldn't you know it... The rafters fit perfectly! I'd say it's a great success. 100% level and square - but took a lot of measuring. Thanks again! I'll send you guys some pics when I finish up and have the lights and fans installed. Just wanted to thank you for a heck of a product, I am very pleased.

James Shaw

I was worried that the joints would swell and be difficult to assemble in the rain. I had very little difficulty. They went together very well. The workmanship on the parts was excellent.

John Mitchell

Greetings! Attached are photos of our Baldwin Pergola which we love. We are very happy. Here are photos showing what it looks like when we hang the colored sheets up for added shade - very festive and inexpensive. Thank you again!

Sonja Hansen and Dennis Szabaday in Nashua, NH

"First, man defines his architecture. Forever after, his architecture defines him."

Municipal Steel Structures

Have a need for a large steel structure as part of a public works project?

We've partnered with a large steel structure manufacturer so we can meet all your Park and Rec needs.

Clock tower

Custom Pavilion

Custom Shade Shelter

Custom Steeltown Shade Shelter

Tapered Barrel Pavilion

Send us your plans »

The rigidity of the pergola is derived from the stability of the connection to the Earth. The importance of big, solid footings which are placed accurately, cannot be overstated.

The rigidity of the pergola is derived from the stability of the connection to the Earth.

Concrete footings: 14" Diameter minimum for 10" square and 12" round columns.

Our site plan will show a diagonal dimension. This helps you square the footings to each other.

Concrete pad: Should be poured 12" deep in the area where the columns will stand.

Stone wall: It's best to drill 18" deep into the well built, mortared stone wall.

Concrete pier: Wet set our 5/8" stainless steel rods into the footing then build the pier

Tolerance factor: Footings should be placed accurately with an overall error margin of less than an inch.

Conduit in footings: Bring a sweep into your footing with the center about three inches off center.

Deck mounted: Ask us for PDF drawings of best practice connection methods.

It is the customers responsibility to make sure that an adequate mounting surface is in place. The customer is responsible for supplying relevant dimensions such as the depth and width of column centers and overall height requirements for the structure.

All dimensions, including overhangs and member spacing are completely customizable during the design process. At the time of installation, nothing can be changed.

Standing a column up onto a concrete footing. We previously drilled the footing and epoxied a 5/8" stainless steel threaded rod into the footing.

Gather Your Measurements

Measurements are taken from column centers, our typical overhang is 24 inches

A freestanding pergola that measures 120" x 120" on center will have an overall size of 168" x 168"

An attached pergola that measures 120" x 120" on center will have an overall size of 144" deep x 168" wide

All dimensions, including overhangs and member spacing are completely customizable

Use our Pricing Tool

Our pricing tool let's you design your pergola in real time and get an actual price

You will see a plan view CAD drawing of your pergola

You can consider our electrical options, a shade system and/or our installation service

follow this link to our Pricing Tool

You will have the ability to save your project into our database then share the link with your team for group collaboration

Send Us Photos

Your photos help us serve you better in the design phase

Please send us pictures of your proposed site and the exterior of your home

Pictures can be sent via email to sales@baldwinpergolas.com

...or via text to (860) 500-1741. Our pricing tool also allows one to upload photos and various file types

Speak With Our Team

Once you have sent us your measurements and pictures we will reach out to you

Our project manager, Michael Hurlburt, will work out all of the important details

Once we have an understanding of your vision we will produce a set of drawings and a proposal

If you accept our proposal we require a 50% deposit to begin production

Consider the Options

We offer a wide variety of options for you to consider

Decorative Details: We offer an array of column styles and rafter contours

Finishes: Custom colors are available, including color matched finishes

Electrical: We can factory prewire your structure to accommodate lighting, fans, heaters, and more

Confirm The Details

Review and confirm your pergola or pavilion drawings

Review your electrical and shade system options

Sign and return the proposal

Once a signed proposal is returned and a deposit is received, we will begin production

Testimonials

It's been a tremendous honor to design and build these fantastic structures for our customers. We look forward to upcoming challenges and the beauty they bless us with.
